Automatic Honey Filling Machine: Precision by Weight

Upgrade your bottling with our automatic honey filling machine. This intelligent, weight-based filler uses a high-torque gear pump and an integrated digital scale to deliver perfect fills to the exact gram. It is the ultimate tool for beekeepers and food producers who demand absolute accuracy and efficiency.

---



Technical Specifications at a Glance



This table provides a side-by-side comparison of our weight-based honey filling machine models. Each is engineered for a specific scale of operation, from small apiaries to commercial bottling lines.

Attribute	BBE-AHF-4L (4L/min)	BBE-AHF-8L (8L/min)	BBE-AHF-3L (SS Pump)
Item Number	BBE-AHF-4L	BBE-AHF-8L	BBE-AHF-3L
Max. Flow Rate	≤4 L/min	<8 L/min	<3.5 L/min
Filling Range (Weight)	10 g – 4,500 g	10 g – 8,000 g	30 g – 10,000 g
Filling Accuracy	±0.2%	±0.2%	±0.2%

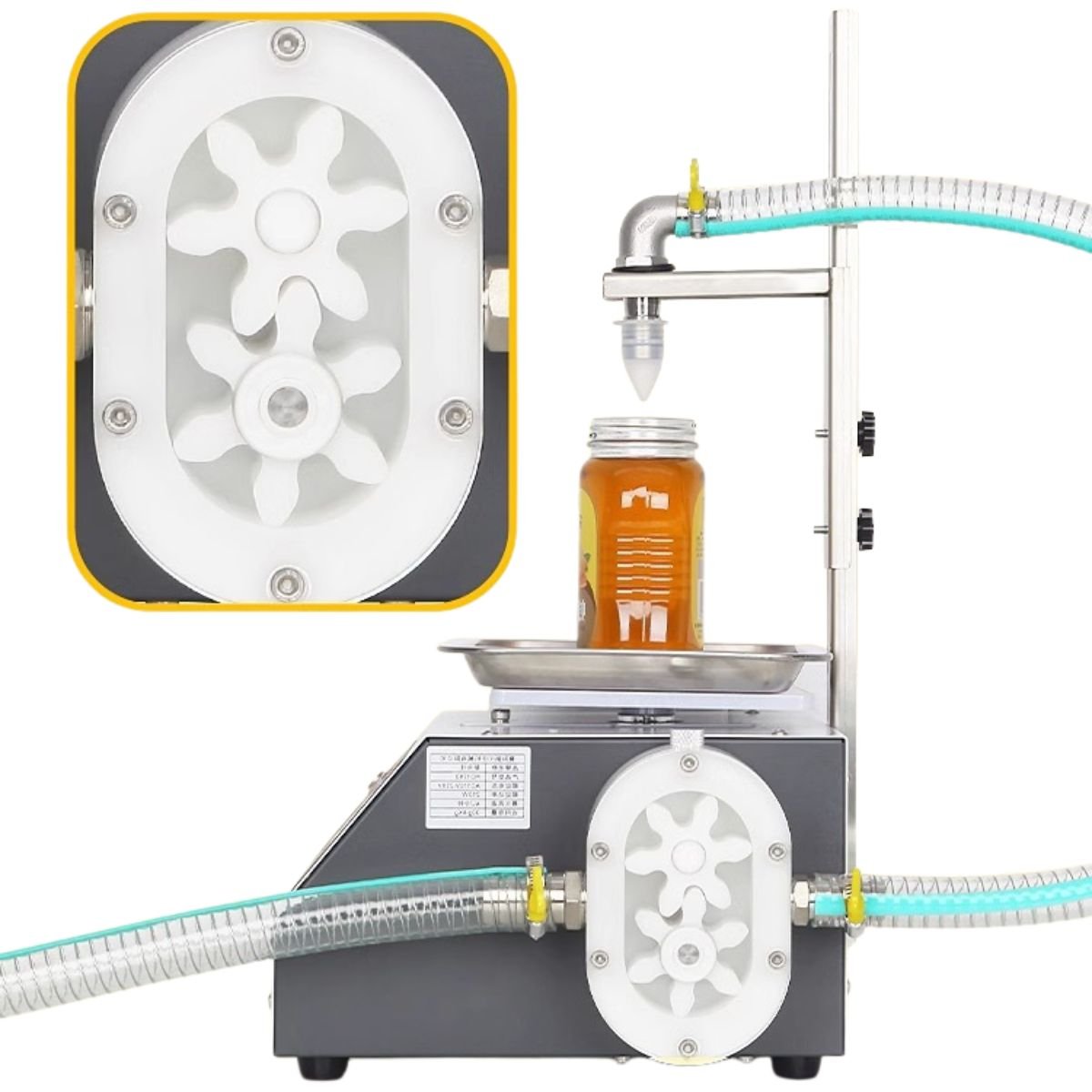

Pump Type	Food-Grade Gear Pump	High-Capacity Gear Pump	Stainless Steel Gear Pump
Rated Power	150W	250W	350W
Voltage	AC 220V (110V available)	AC 220V (110V available)	AC 110V – 220V
Dimensions (LWH)	27 x 27.7 x 15.5 cm	30 x 30.7 x 16.7 cm	28 x 28 x 23 cm
Unit Weight	7 kg (15.4 lbs)	12 kg (26.5 lbs)	17 kg (37.5 lbs)
Adjustable Height	0 – 35 cm	0 – 35 cm	0 – 45 cm
Max. Suction Lift	2 meters (6.5 ft)	2 meters (6.5 ft)	2 meters (6.5 ft)
Smart Functions	Auto-Tare, Auto-Start/Stop, Data Memory, Variable Speed, Auto-Count, Power-Off Memory

---



Stop Guessing, Start Filling with Perfect Accuracy

Volumetric fillers are fundamentally flawed for honey. Why? Because honey’s density changes with temperature and moisture content, a “volume” fill can result in significant weight variations from jar to jar, costing you product and profit. This automatic honey filling machine solves that problem by using the gold standard for accuracy: filling by weight. The integrated electronic scale is the brain of the operation. You simply enter your target weight—for example, 500 grams—on the intuitive digital panel.

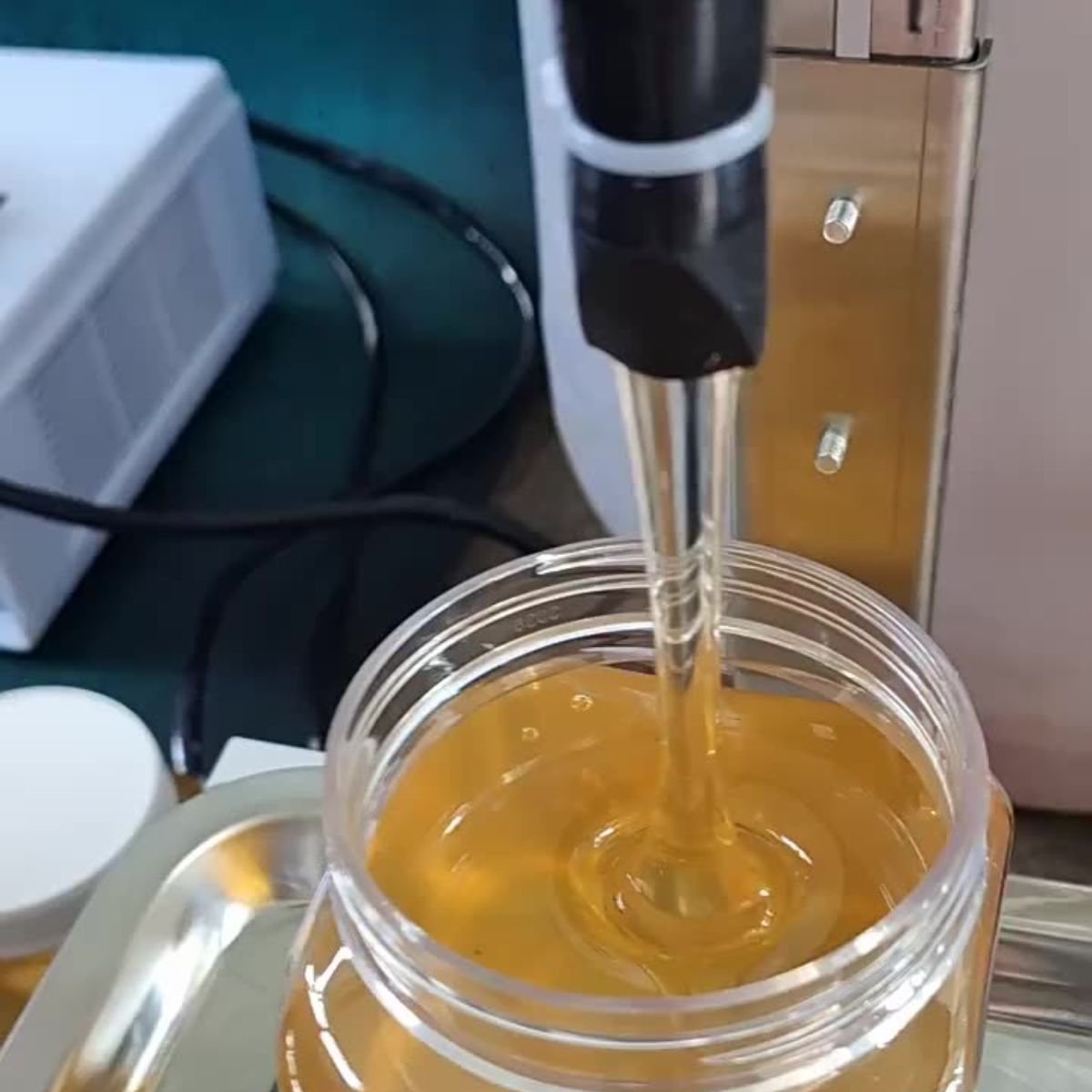

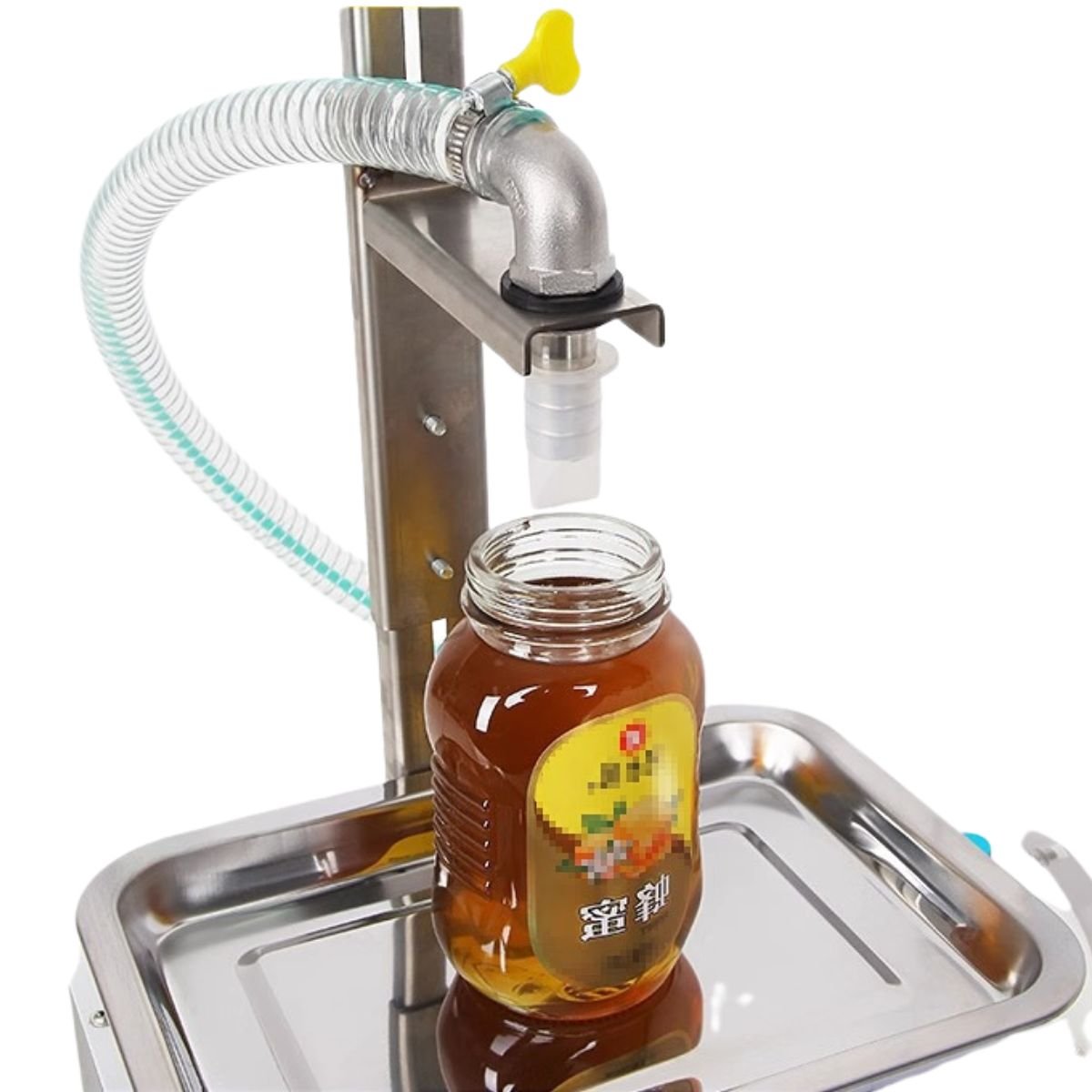

The workflow is incredibly simple. Place an empty jar on the stainless steel tray; the machine instantly tares the weight to zero. The powerful, food-grade gear pump, specifically designed to handle viscous liquids, then fills the jar. The moment the scale registers 500g, the pump stops with microsecond precision, and the anti-drip nozzle ensures a clean, mess-free finish. This system eliminates product giveaway, guarantees consistency for your customers, and transforms your bottling day from a chore into a streamlined, professional process.

---



Wholesale and OEM Customization

As the direct manufacturer, we offer full OEM/ODM services and factory-direct pricing for our global distribution partners.

Item	MOQ	Custom Logo	Color Choices	Lead Time (days)	Remark
Honey Filler (BBE-AHF Series)	5 units	Branded panel/decal	Standard Grey	15-25	Voltage (110V/220V) and plug type can be specified per region.

---



Global Logistics for Your Bottling Operation

We facilitate easy procurement for our B2B clients with professional logistics and secure payment options. We ship worldwide via sea, air, and rail (primarily FOB, with CIF/DDP available). Our annual capacity exceeds 5,000 filling machine units, ensuring a stable supply for distributors. Standard production lead time is 15-30 days. We protect your investment with secure payment methods including T/T, L/C, and PayPal.

---



Certified for Commercial Food Production

Our equipment is engineered to meet rigorous international standards for electrical safety, quality control, and food-grade material compliance.

• ISO 9001:2015 Certified Quality Management
• CE Certified for Electrical Safety and EMC
• FDA Compliant materials for all food-contact parts (tubing, pump head)
• RoHS Compliant Components

---



Success Story: Gourmet Sauce Brand Cuts Waste by 3%

An artisanal sauce company was struggling with inconsistent fills using a volumetric piston filler, resulting in an average product giveaway of 3% per batch. After adopting the BBE-AHF-8L weight-based filling machine, they achieved a fill accuracy of ±0.2%. This precision eliminated their product waste, saving them over $10,000 in the first year alone and allowing them to meet the strict net weight requirements for a major national retail chain.

---



Find Your Perfect Filling Machine

Choose the model that matches your production volume and product type to maximize your bottling efficiency.

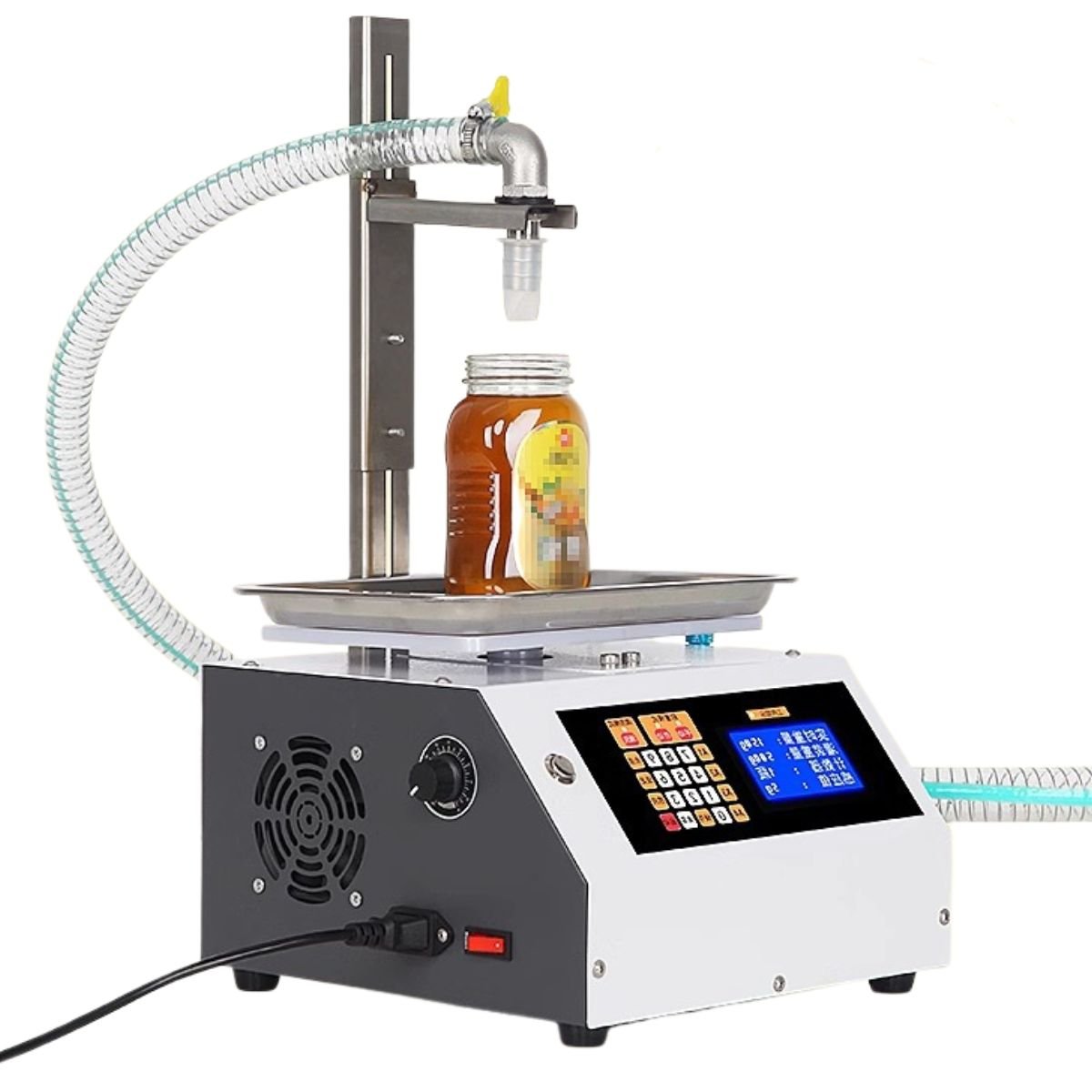

• BBE-AHF-4L (4L/min Model): Best for small-scale apiaries and start-ups. This compact model is perfect for beekeepers bottling for farmers’ markets or producers with smaller batch sizes. It offers exceptional accuracy in a small, portable footprint.
• BBE-AHF-8L (8L/min Model): Best for growing businesses and sideline beekeepers. With double the flow rate, this is the workhorse model for those who need to bottle larger harvests or full tank batches quickly and efficiently.

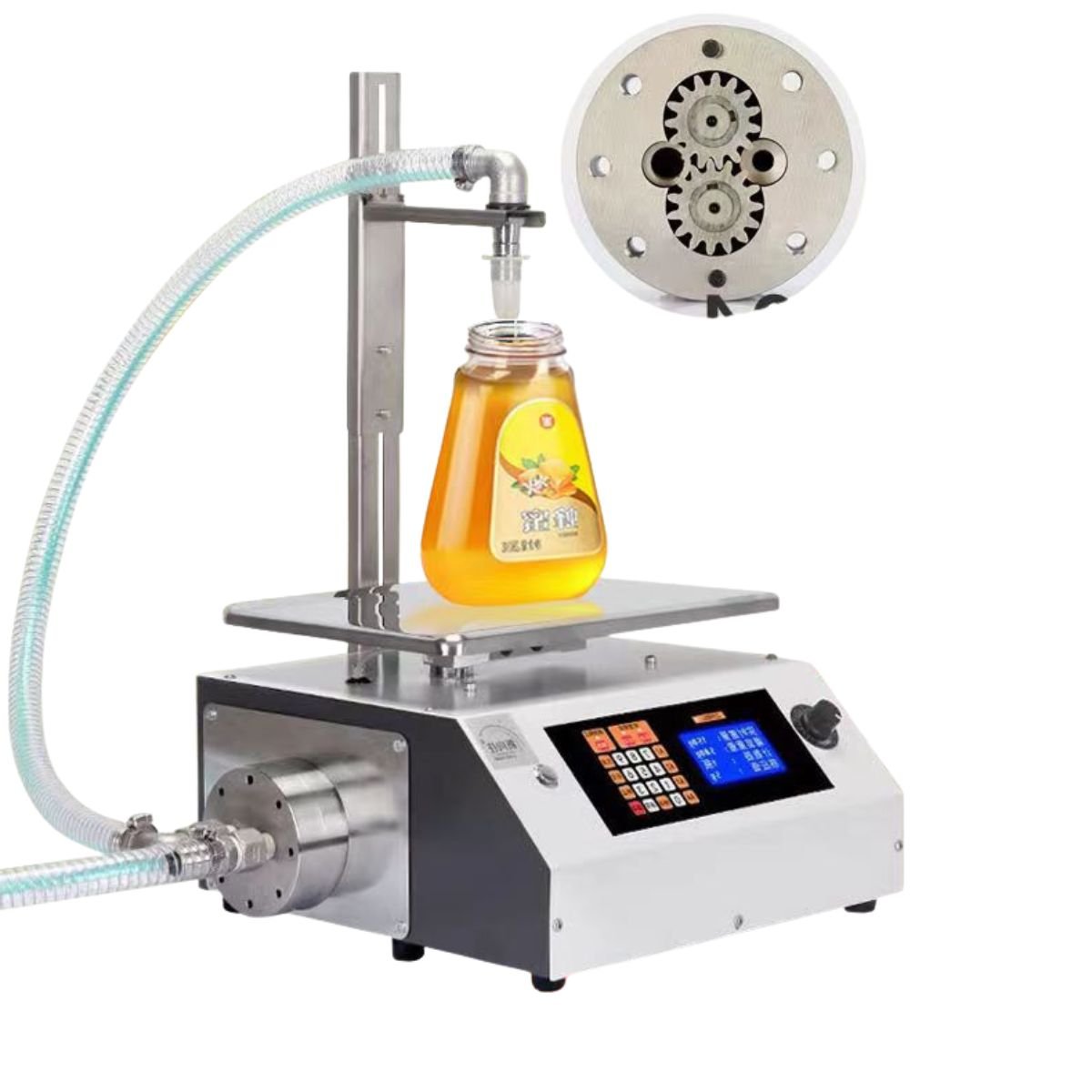

• BBE-AHF-3L (Stainless Steel Pump): Best for commercial and multi-product use. This heavy-duty model features a robust stainless steel gear pump, offering maximum durability and resistance for producers who bottle honey as well as other viscous products like oils, syrups, or sauces.

---



Build Your Complete Bottling System

This high-precision filler is the centerpiece of a professional packaging line. Combine it with these tools for a seamless workflow.

• Honey Warming Tank: The essential first step. Gently heat your honey to a consistent 35-40°C (95-104°F) to ensure a perfect, repeatable viscosity for the fastest possible filling speed.
• Bulk Honey Tank with Outlet: A large stainless steel tank to serve as your reservoir, feeding honey directly into the machine’s suction tube for continuous operation.
• Induction Seal Capper: Ensure a tamper-evident and airtight seal on your jars with an induction sealer, a requirement for many retailers.
• Semi-Automatic Labeling Machine: Apply your brand labels perfectly straight and consistently on every jar, providing the professional finish your product deserves.

---



Set the Weight, Place the Jar, Get a Perfect Fill

This video demonstrates the incredible simplicity and precision of our automatic honey filler. Watch as an operator easily types the target weight (e.g., 500g) into the digital keypad. See the machine’s smart auto-tare function zero out the scale as an empty jar is placed on the platform. The pump then starts automatically, delivering a smooth, fast fill and stopping the instant the target weight is reached. The anti-drip nozzle ensures a clean cutoff every time, showcasing a bottling process that is fast, clean, and perfectly accurate.

---



Frequently Asked Questions

Get direct, expert answers to your questions about the Automatic Honey Filling Machine.

Q1: Why is filling by weight more accurate than filling by volume?

Honey’s density changes with temperature and moisture. A volumetric filler can give you inconsistent weights, but a weight-based filler guarantees that every jar contains the exact same amount of product, eliminating waste.

Q2: What is required to operate this machine?

All you need is a standard electrical outlet. Unlike pneumatic fillers, this machine does not require an external air compressor, making it quieter and easier to set up.

Q3: How do you clean the pump and hoses?

Cleaning is simple. You pump warm water, followed by a food-grade sanitizer, through the entire system until it runs clear. The hoses are attached with standard fittings for easy removal.

Q4: What is the pump made of?

The pump head is made of food-grade materials, with high-torque internal gears designed to move viscous liquids without damage. The BBE-AHF-3L model features a fully stainless steel gear pump for maximum durability.

Q5: Can the machine store my settings for different jar sizes?

Yes. The intelligent control panel includes a data storage function, allowing you to save preset weights for your most common jar sizes (e.g., 250g, 500g, 1kg) for instant recall.

Q6: How does the “auto-start” function work?

In automatic mode, the integrated scale senses when a new, empty jar has been placed on the platform. It will automatically tare (zero out) the jar’s weight and then begin the filling cycle without needing a pedal or button press.

Q7: Can this filler handle thick, crystallized honey?

No. For optimal performance and accuracy, honey must be in a liquid, flowable state. We strongly recommend using this machine in conjunction with a honey warming tank.

Q8: What is the wholesale pricing for an order of 10 units?

We offer competitive tiered pricing for B2B clients. For a formal quote on a 10-unit order, please contact our sales team with your desired model mix and shipping destination.

Q9: How noisy is the machine during operation?

The machine is designed for quiet operation, producing less than 63 decibels of sound, which is quieter than a normal conversation.

Q10: What is the warranty and support policy?

We provide a comprehensive 1-year manufacturer’s warranty covering any defects in materials or workmanship, along with lifetime technical support from our expert team.
