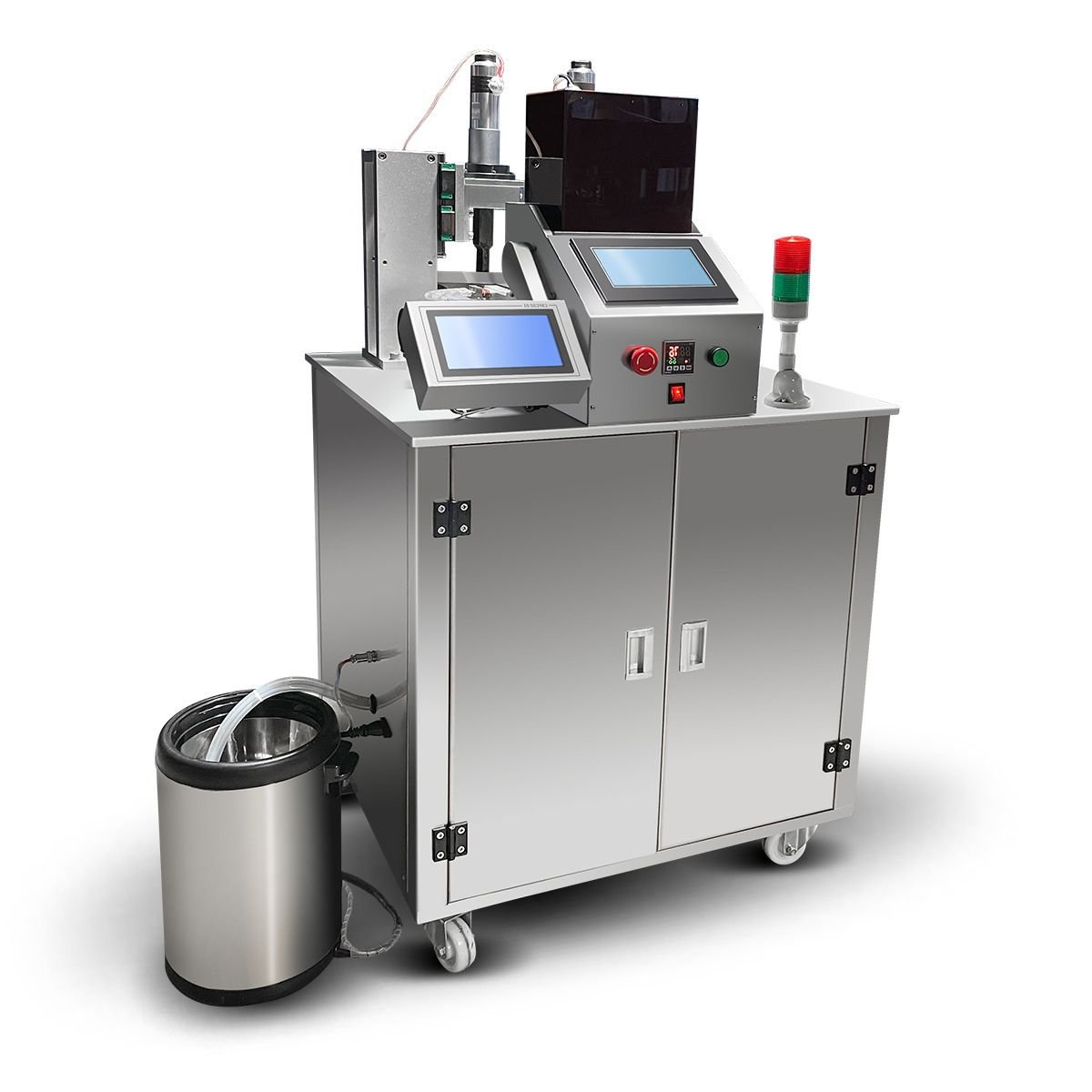

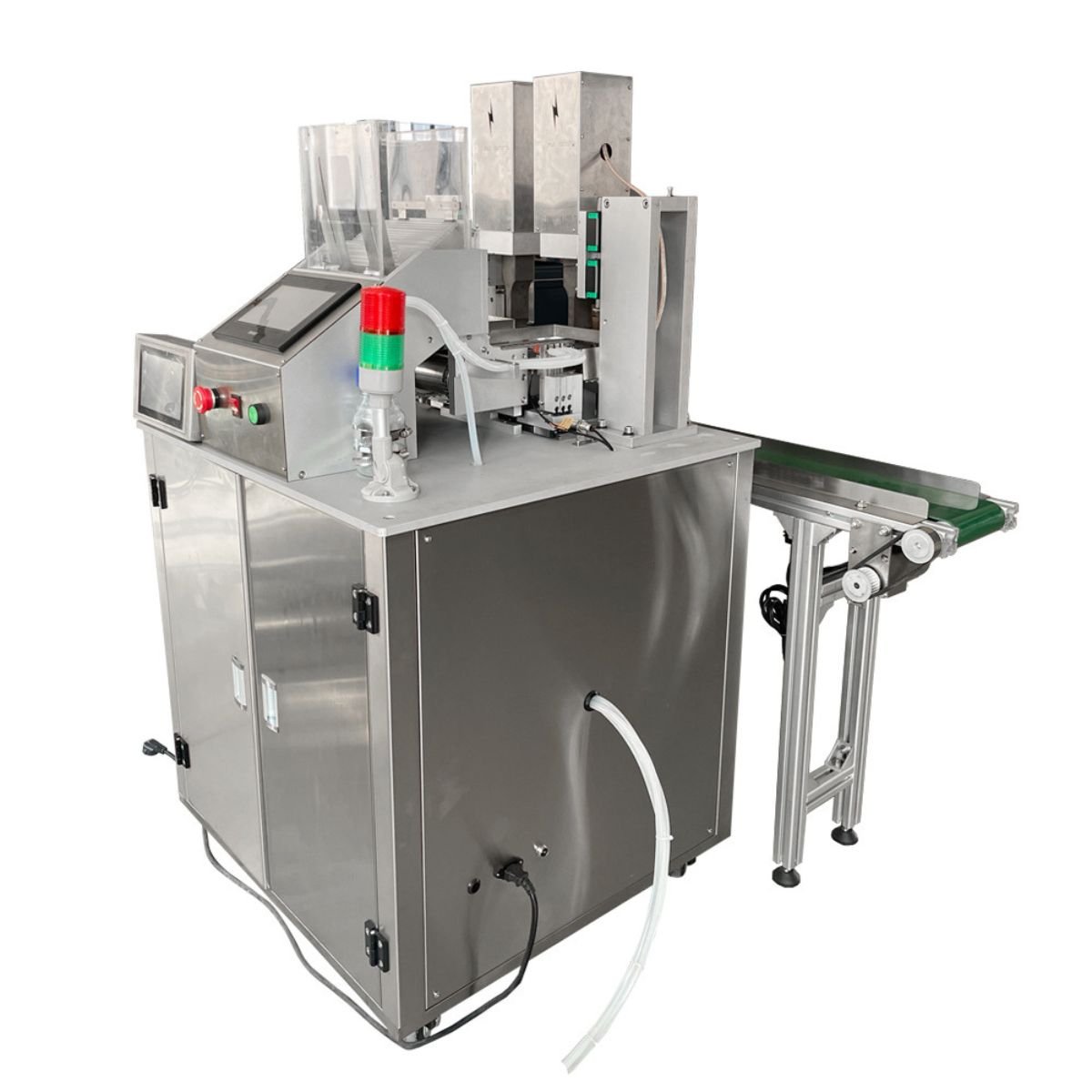

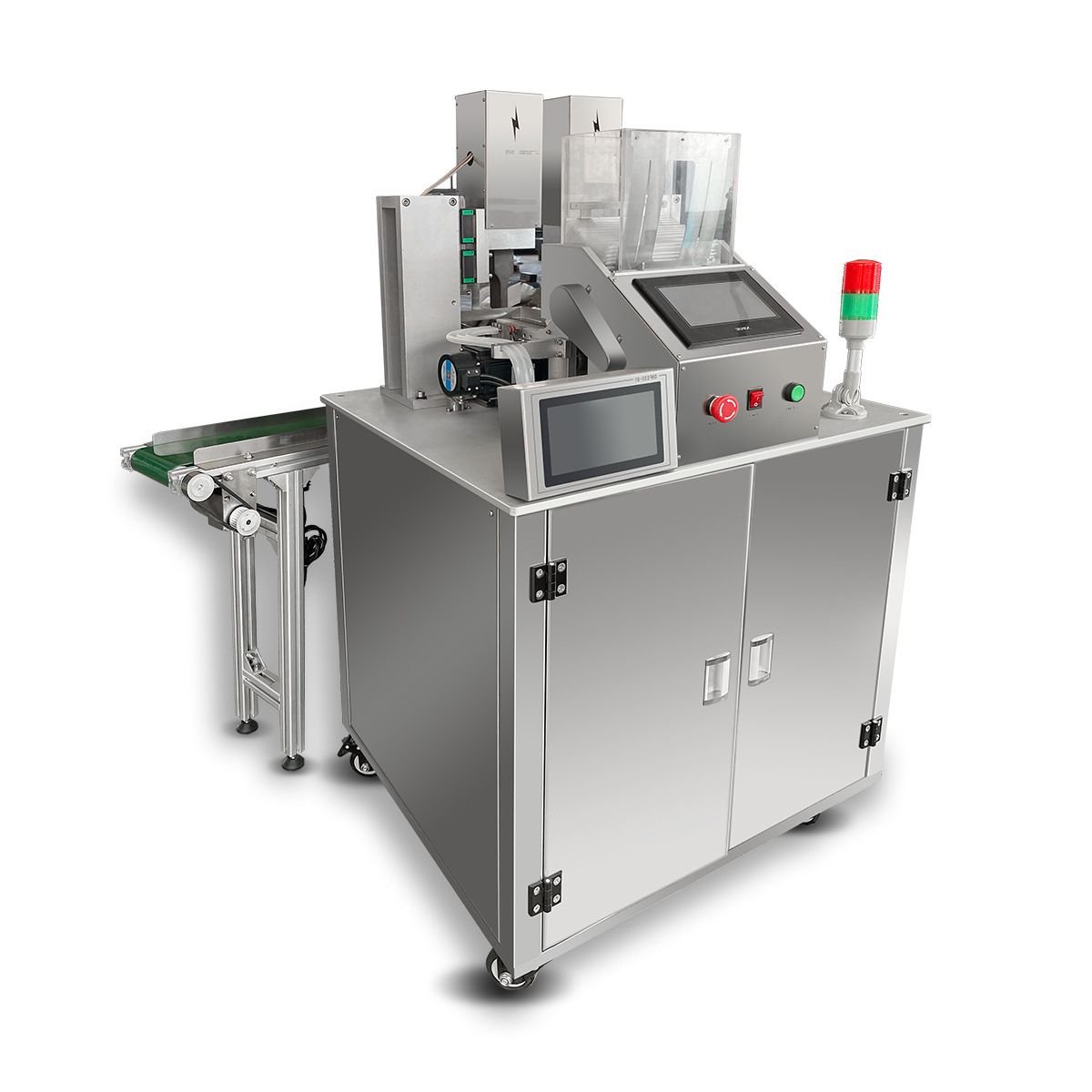

Automatic Honey Straw Filling Machine

Automate your production of single-serve honey sticks with our automatic honey straw filling machine. This all-in-one system fills, seals, and cuts up to 3,000 straws per hour with quantitative precision. It is the definitive solution for honey producers creating high-margin, value-added retail products.

---



Technical Specifications at a Glance

This machine is engineered for high-throughput, automated production of honey straws. Every component is designed for precision, reliability, and compliance with food safety standards.

Attribute	Specification
Product Name	Automatic Honey Straw Filling & Sealing Machine
Item Number	BBE-EAHF-1
Automation Level	Fully Automatic
Production Speed	2,500 – 3,000 straws per hour
Filling Heads	6
Control System	Dual-Screen PLC (Programmable Logic Controller)
Operating Temperature	0 – 150°C (32 – 302°F)
Standard Straw Dimensions	Length: 197 mm (7.75 in), Diameter: 6.35 mm (0.25 in) – Customizable
Seal Width	6.7 mm
Voltage	220V 50/60Hz (Customizable)
Power Consumption	4 kW
Construction	Food-Grade Stainless Steel Cabinet and Contact Parts

---



From Bulk Honey to Retail-Ready Honey Sticks, Automatically

Manually creating honey sticks is an impossible task for any commercial operation. To tap into the lucrative market for single-serve honey, you need a dedicated, automated solution. The BuzzBeeEquip automatic honey straw filling machine is a complete production line in a single, compact unit. This machine transforms your bulk honey into thousands of perfectly portioned, sealed, and retail-ready honey sticks with minimal operator intervention. You simply load the straw material, supply the liquid honey, and set your parameters on the intuitive dual-touchscreen interface.

The process is a masterclass in engineering efficiency. The system automatically feeds, fills a precise dose into each straw using a high-accuracy pump, creates a strong heat seal to prevent any leaks, and cuts the finished stick to the perfect length. The entire honey pathway, including the pump and filling nozzles, is designed with a temperature control system (up to 150°C) to keep your honey at the ideal low viscosity for fast, accurate filling. Stop tedious manual labor and start producing a high-value product at scale.

---



Factory-Direct and OEM Manufacturing

As the direct manufacturer, we offer competitive pricing and full OEM/ODM capabilities for food processing and packaging distributors worldwide.

Item	MOQ	Custom Logo	Color Choices	Lead Time (days)	Remark
Honey Straw Machine (BBE-EAHF-1)	1 unit	Branded HMI/Panel	N/A (Stainless Steel)	30-45	Straw dimensions, sealing type, and voltage are fully customizable.

---



Global Logistics for Industrial Equipment

We provide a seamless B2B procurement experience with professional, secure logistics. We ship globally via sea freight (our standard is FOB), delivering your machine in a custom-built, ISPM 15 compliant wooden crate. With an annual capacity of over 200 production machines, we ensure a stable supply chain. Standard lead time is 30-45 days. We protect your capital investment with secure payment methods including T/T and L/C.

---



Certified for Commercial Food Production

Our machinery is engineered and manufactured to meet stringent international standards for safety, quality, and hygienic design.

• ISO 9001:2015 Certified Quality Management System
• CE Certified for Machinery Safety and Electrical Compliance (LVD/EMC)
• FDA Compliant 316L Stainless Steel and Food-Grade Tubing for all contact parts
• SGS Audited for Production Integrity

---



Case Study: Co-Packer Increases Revenue with New Service Line

A US-based food co-packer wanted to offer a new value-added service to their apiary clients. After investing in the BBE-EAHF-1 honey stick packing machine, they were able to process their clients’ bulk honey into retail-ready honey straws. This new service line became their most profitable offering within six months, attracting five major regional apiaries and increasing their overall annual revenue by 40%. The machine’s reliability allowed them to run two shifts during peak season.

---



Which Filling Machine is Right for Your Product?

Choosing the right machine depends on your final product. This guide clarifies the ideal use case for our automated systems.

• Honey Straw Machine (This Model): Best for creating single-serve, value-added products. This is the definitive choice if your goal is to produce high-margin, portable honey sticks for retail, food service, or promotional use. It is a complete form-fill-seal solution for a specific product format.
• Semi-Automatic Piston Filler: Best for bottling honey into traditional jars and containers. If your primary products are glass jars, plastic bears, or bulk pails, a piston filler is the correct tool. It is designed for accurately filling pre-made containers, not creating the package itself.

---



Build Your Honey Straw Production Line

This machine is the core of your operation. Integrate it with this essential upstream and downstream equipment for maximum efficiency.

• Jacketed Honey Warming & Mixing Tank: This is the critical first step. A large, temperature-controlled tank is needed to hold your bulk honey, keep it at a perfect, low viscosity, and feed it consistently to the filling machine.
• Bulk Straw Film Rollstock: The raw material for the machine. We can help you source food-grade, printable plastic film that is compatible with the machine’s forming and sealing system.
• Outfeed Conveyor and Collection System: A simple conveyor to move the finished honey sticks from the machine’s cutting station into a large, sanitary collection bin for bulk packing.
• Cartoning Machine: For high-volume retail sales, an automatic cartoning machine can take your finished honey sticks and package them into branded paperboard boxes.

---



Automated Production of a High-Margin Product

This video showcases the end-to-end process of the BuzzBeeEquip honey straw machine. See how a roll of flat, food-grade film is automatically formed into a continuous tube. Watch the precision six-head filling station dose an exact amount of liquid honey into the tube, followed immediately by the high-integrity sealing and cutting mechanism. The result is a steady stream of perfectly identical, retail-ready honey sticks, demonstrating a level of speed and consistency that is impossible to achieve manually.

---



Frequently Asked Questions

Get expert answers to your questions about the Automatic Honey Straw Filling Machine.

Q1: What products can this machine handle besides honey?

It is designed for viscous liquids. It is also excellent for producing single-serve sticks of products like fruit jelly, syrups, sauces (ketchup, mustard), and some liquid nutritional supplements.

Q2: What is the required raw material for the straws?

The machine uses a roll of flat, laminated plastic film (rollstock). It automatically forms this film into a tube, fills it, and seals it. We can provide specifications for sourcing the correct compatible film.

Q3: Is the machine difficult to operate?

No. Once set up, operation is managed through the intuitive PLC touch-screen interfaces. An operator can be trained to load materials, set filling parameters, and monitor production in a single day.

Q4: What parts of the machine touch the honey?

All components in the honey pathway—including the hopper, tubing, pump, and filling nozzles—are constructed from certified food-grade 316L stainless steel for maximum hygiene and corrosion resistance.

Q5: How is the filling volume adjusted?

The fill volume is controlled electronically via the PLC touch screen. The servo-driven pump provides extremely precise and repeatable dosing that can be adjusted with a few taps.

Q6: What does “quantitative” filling mean?

It means the machine dispenses a precise, measured dose (quantity) of honey into each straw, ensuring every single stick contains the exact same amount of product for consistency and cost control.

Q7: How is the machine cleaned?

The system is designed with CIP (Clean-in-Place) principles. You can circulate hot water and cleaning solutions through the entire honey pathway without major disassembly, ensuring fast and effective sanitation.

Q8: Can I customize the length and diameter of the honey sticks?

Yes. The machine can be customized at the factory to produce different straw lengths and diameters to meet your specific product requirements.

Q9: What is the lead time for a wholesale or OEM order?

Standard production lead time is 30-45 days. We can provide a more precise schedule upon confirmation of your specific customization requirements.

Q10: What kind of warranty and technical support do you offer?

We provide a comprehensive 1-year manufacturer’s warranty covering parts and workmanship. We also offer remote technical support, diagnostics, and a full inventory of critical spare parts.
