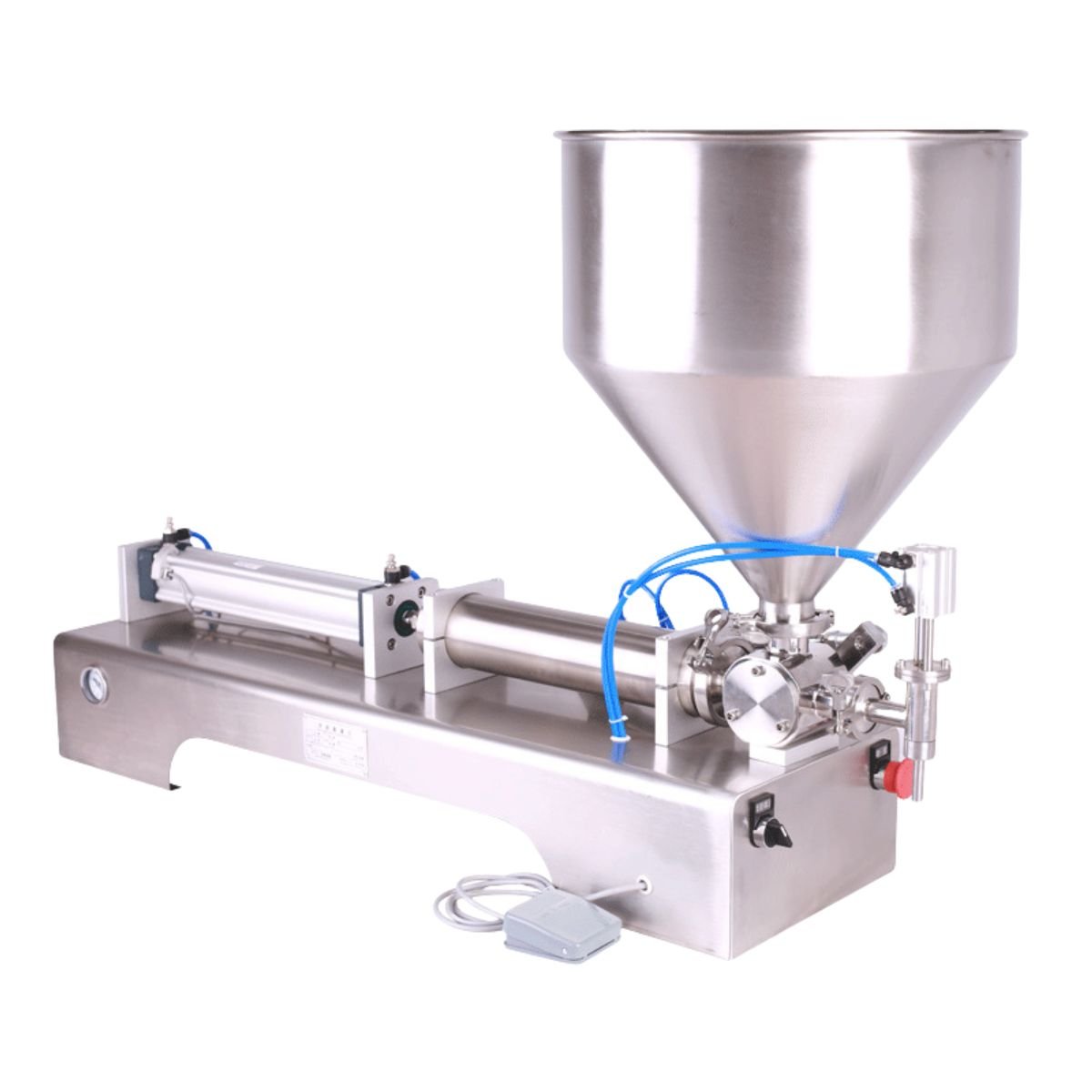

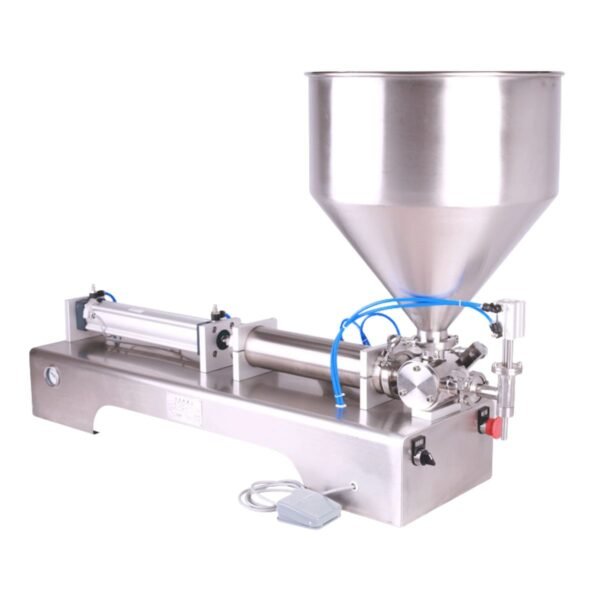

Pneumatic Piston Filler for Honey and Viscous Liquids

Upgrade your bottling with our pneumatic piston filling machine. Engineered from food-grade 304 stainless steel, this filler provides exceptional accuracy (≤1%) for honey, creams, and sauces. It is the perfect semi-automatic solution for beekeepers and producers looking to increase speed and eliminate product waste.

---



Technical Specifications at a Glance

This machine is engineered for precision, durability, and versatility. Choose the model with the fill range that matches your specific packaging needs.

Attribute	Specification
Product Name	Semi-Automatic Pneumatic Paste Filling Machine
Item Number	BBE-PSHF-02 Series
Automation Level	Semi-Automatic
Working Principle	Pneumatic Piston (Constant Pressure)
Material	304 Stainless Steel (Body, Hopper, Contact Parts)
Filling Accuracy	≤1%
Filling Speed	15 – 35 bottles per minute
Hopper Capacity	Approx. 30 Liters (8 Gallons)
Required Air Pressure	0.4 – 0.9 MPa (Air compressor required)
Control Modes	Manual (Foot Pedal) / Automatic (Timed Cycle)
Dimensions (L×W×H)	1200 × 400 × 350 mm (47.2 × 15.7 × 13.8 in)
Available Fill Ranges	5-100ml, 30-300ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml

---



The Professional Solution to Inefficient Manual Bottling

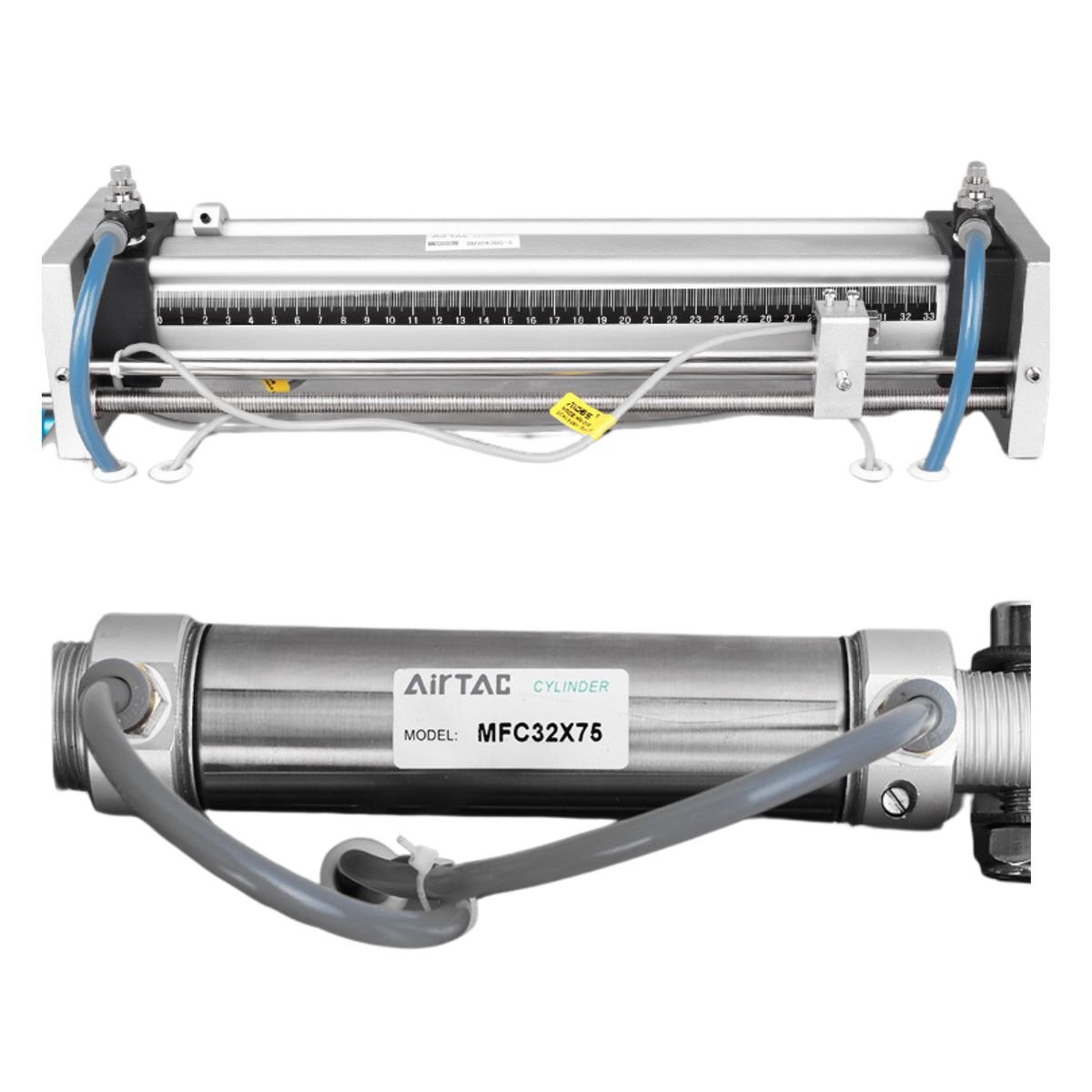

Stop wasting time and product with inconsistent, messy manual bottling. The BuzzBeeEquip pneumatic piston filler is the definitive upgrade for any serious honey producer. Unlike simple gravity-fed systems, this machine utilizes a powerful pneumatic cylinder to drive a precision-machined piston. This positive displacement action is the key to its incredible accuracy; it dispenses a precise, repeatable volume of thick honey every single time, with a tolerance of just 1%. You will immediately eliminate costly overfills and unprofessional-looking underfills.

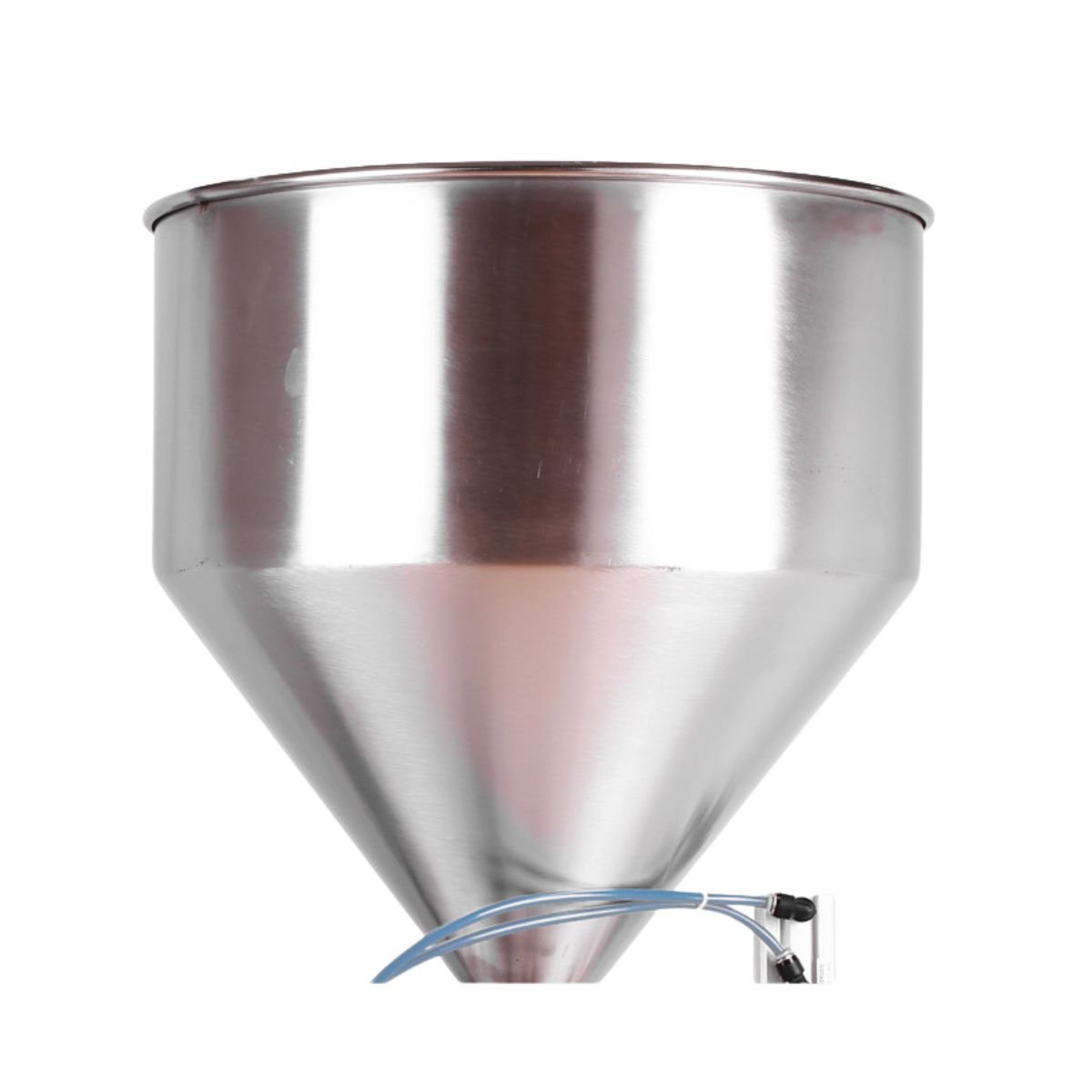

You can feel the robust, industrial quality of the heavy-gauge 304 stainless steel construction. The entire machine is built to withstand the rigors of a production environment and the natural acidity of honey. We engineered it for a practical workflow: the large 30L hopper means less time spent refilling, and the anti-drip filling nozzle with its one-way valve ensures a clean cutoff after every fill. Take control of your packaging process with the speed, accuracy, and reliability your product deserves.

---



Wholesale and OEM Manufacturing

As the direct factory, we provide our global partners with competitive pricing and full OEM/ODM capabilities to meet specific market requirements.

Item	MOQ	Custom Logo	Color Choices	Lead Time (days)	Remark
Piston Filler (BBE-PSHF-02)	1 unit	Branded Plate	N/A (Stainless Steel)	15-25	Heated/mixing hoppers and dual-head configurations available.

---



Global Logistics and Secure Procurement

We ensure a seamless procurement process with professional logistics and secure payment terms. We ship worldwide via sea, air, and rail (primarily FOB), delivering your equipment in secure, custom-built wooden crates. With an annual capacity of over 1,000 filling machines, we guarantee supply stability. Standard production lead time is 15-30 days, with all transactions protected by secure methods like T/T, L/C, and PayPal.

---



Certified for Food and Pharmaceutical Production

Our equipment is manufactured to meet rigorous international standards for machinery safety, quality control, and hygienic design.

• ISO 9001:2015 Certified Quality Management System
• CE Certified for Machinery Safety and Electrical Standards
• FDA Compliant 304 Stainless Steel and PTFE Seals for all food-contact parts
• SGS Audited for Material Purity and Production Integrity

---



Case Study: Creamed Honey Producer Increases Output by 400%

A Canadian apiary specializing in creamed honey struggled with a slow, manual bottling process. After implementing the BBE-PSHF-02 (50-500g model) with a heated hopper, they were able to increase their bottling speed from 3 jars per minute to 15 jars per minute. This 400% increase in productivity allowed them to fulfill a major retail contract and expand their product line, boosting their annual revenue by 60% in the first year.

---



Find Your Perfect Fill Range

Choosing the right model is critical for optimal accuracy. Select the machine whose range best covers your most common container size.

• 5-100ml / 30-300ml Models: Best for small jars, cosmetics, and samples. Ideal for products like lip balms, sample-sized honey jars (1-3 oz), or cosmetic creams.
• 50-500ml / 100-1000ml Models: Best for standard retail honey jars. This is the workhorse range for typical 250g (8 oz), 500g (1 lb), and 1kg (2 lb) honey jars and bottles.
• 250-2500ml / 500-5000ml Models: Best for bulk and food service containers. Designed for filling large “honey bear” jugs, gallon containers, and food service pails with speed and precision.

---



Build a Complete Bottling Line

This piston filler is the heart of your packaging operation. Pair it with these essential components for a professional workflow.

• Air Compressor: This machine is pneumatic and requires a clean, stable air supply from an air compressor to function.
• Honey Warming Tank: For honey, this is essential. Gently heating your honey lowers its viscosity, ensuring a smooth, fast, and highly accurate fill.
• Stainless Steel Work Table: A dedicated, sanitary surface to place your filler and manage your jars during production.
• Semi-Automatic Capping Machine: The perfect next step in automation to quickly and securely seal your jars after filling.

---



Precision Filling at the Press of a Pedal

This video demonstrates the simple power of the BBE-PSHF-02. Watch as an operator easily sets the precise fill volume using the scaled hand-crank adjustment. See the machine in action, activated by a simple press of the foot pedal, delivering a perfect, drip-free portion of viscous honey into a jar. The video highlights the robust stainless steel construction, the powerful pneumatic action, and the quick-release clamps that allow for fast, tool-free disassembly for easy cleaning.

---



Frequently Asked Questions

Get expert answers to your questions about the Pneumatic Piston Filling Machine.

Q1: What is required to run this machine?

You need two things: a standard electrical connection (110V or 220V) and an external air compressor capable of supplying 0.4-0.9 MPa of pressure.

Q2: How do you set the fill volume?

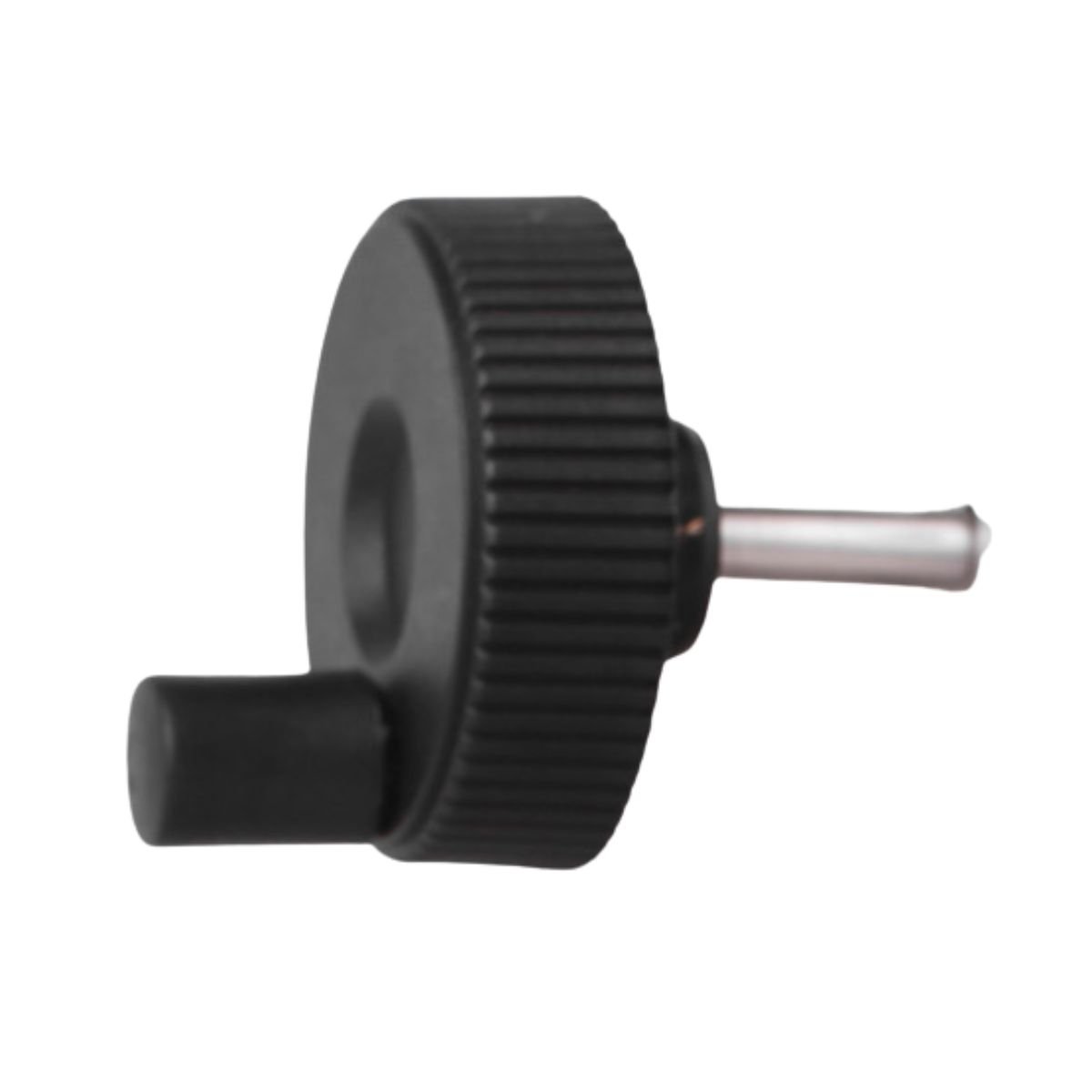

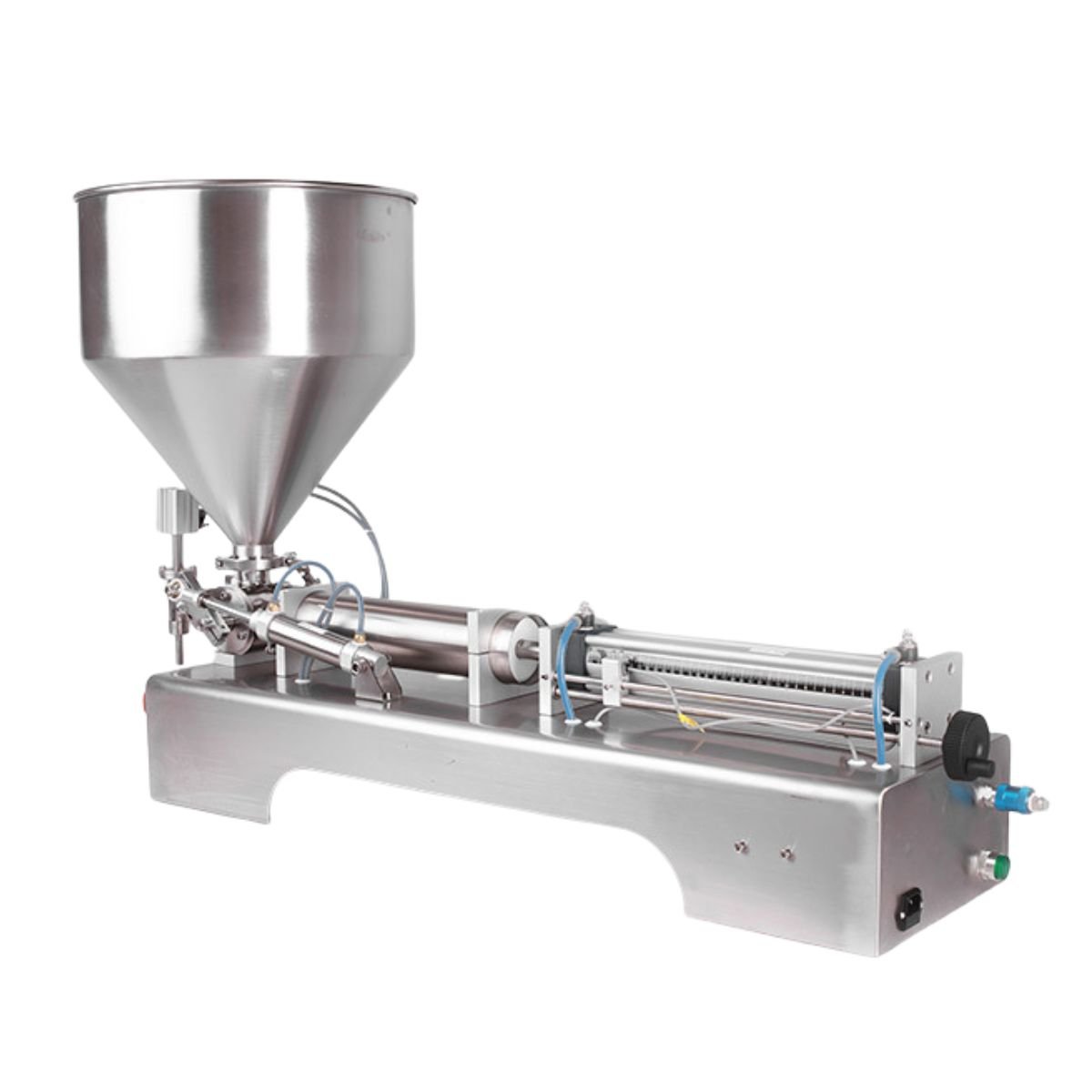

You set the fill volume by turning a simple hand-crank. An easy-to-read scale on the cylinder block allows you to make precise, repeatable adjustments to the piston’s stroke length.

Q3: Is this machine difficult to clean?

No, it is designed for easy sanitation. The hopper, rotary valve, and nozzle are all connected with tool-free tri-clamp fittings, allowing for quick disassembly, cleaning, and reassembly.

Q4: What parts of the machine touch my product?

All contact parts—including the hopper, rotary valve, piston, cylinder, and nozzle—are made from certified food-grade 304 stainless steel, and the seals are made from corrosion-resistant PTFE.

Q5: Can this machine handle very thick, crystallized honey?

For best results, all honey should be warmed to a liquid, flowable state (35-40°C / 95-104°F). For exceptionally thick or creamed honey, we strongly recommend our models equipped with a heated and/or mixing hopper.

Q6: What is the difference between “manual” and “automatic” mode?

In “manual” mode, you press the included foot pedal once for each fill cycle. In “automatic” mode, the machine will cycle continuously at a set interval, allowing the operator to simply place and remove jars.

Q7: Does the nozzle really prevent dripping?

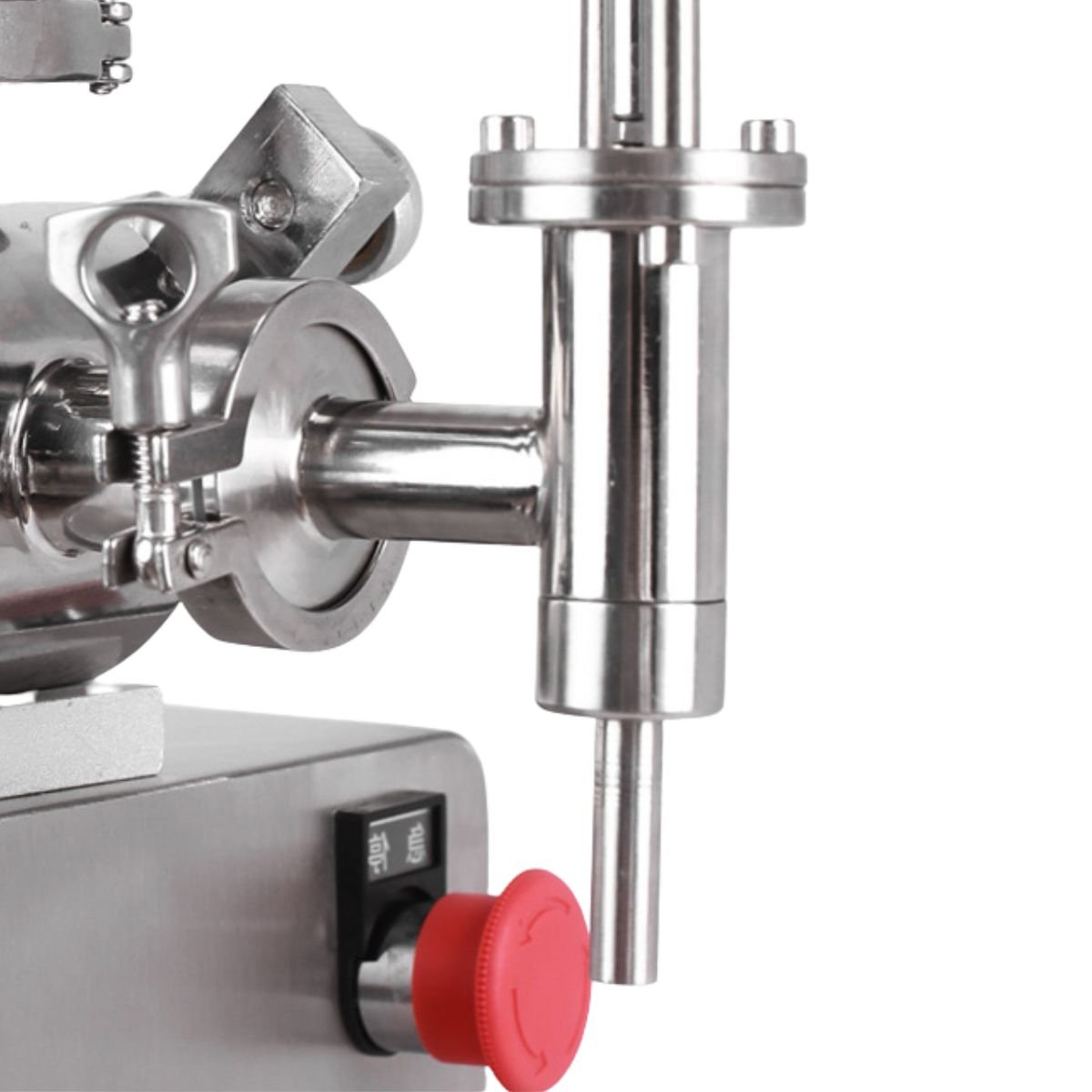

Yes. The filling nozzle is engineered with a one-way valve and a shut-off mechanism that provides a clean, sharp cutoff after each fill, preventing messy and wasteful drips.

Q8: What is your wholesale pricing for distributors?

We offer competitive tiered pricing for our B2B partners. Our MOQ is one unit, but discounts begin at orders of 5+ units. Please contact our sales team for a formal quote.

Q9: Can this machine fill liquids that have chunks, like fruit preserves?

No. This machine is designed for smooth pastes, creams, and liquids. Chunks or large solids can damage the precision rotary valve.

Q10: What is the warranty and support policy?

We provide a comprehensive 1-year manufacturer’s warranty covering any defects in materials or workmanship. We also offer lifetime technical support and maintain a full inventory of spare parts like seals and O-rings.
