Precision Honey Bottling: The Pneumatic Piston Filler

This semi-automatic pneumatic honey filling machine is engineered for accuracy, speed, and reliability. Built with food-grade 304 stainless steel, this piston filler delivers a precise, drip-free fill of ±1% accuracy, transforming your bottling process from a manual chore into a professional, streamlined operation.

Technical Specs at a Glance

Specification	Number of Filling Heads	Applicable Bottle Height (mm)	Applicable Bottle Diameter (mm)	Filling Rate (bottles/min)	Filling Capacity (ml)
Single-Head Paste 10–100 ml	1	100	100	Actual	10–100
Single-Head Paste 30–300 ml	1	100	100	Actual	30–300
Single-Head Paste 50–500 ml	1	100	100	Actual	50–500
Single-Head Paste 100–1000 ml	1	100	100	Actual	100–1000
Single-Head Paste 500–2500 ml	1	100	100	Actual	500–2500
Single-Head Paste 1000–5000 ml	1	100	100	Actual	1000–5000
Double-Head Paste 10–100 ml	2	100	100	Actual	10–100
Double-Head Paste 30–300 ml	2	100	100	Actual	30–300
Double-Head Paste 50–500 ml	2	100	100	Actual	50–500
Double-Head Paste 100–1000 ml	2	100	100	Actual	100–1000
Double-Head Paste 500–2500 ml	2	100	100	Actual	500–2500
Double-Head Paste 1000–5000 ml	2	100	100	Actual	1000–5000
Single-Head Liquid 10–100 ml	1	100	100	Actual	10–100
Single-Head Liquid 30–300 ml	1	100	100	Actual	30–300
Single-Head Liquid 50–500 ml	1	100	100	Actual	50–500
Single-Head Liquid 100–1000 ml	1	100	100	Actual	100–1000
Single-Head Liquid 500–2500 ml	1	100	100	Actual	500–2500
Single-Head Liquid 1000–5000 ml	1	100	100	Actual	1000–5000
Hand-Press A03 5–50 ml	1	100	100	Actual	5–50

Product Attributes :
Brand: BuzzBeeEquip • Applicable: Honey, beverages, oils • Filling Principle: Normal pressure • Filling Accuracy: 99.9 • Product Size: 78×23×67 cm • Application: Filling

Model & Core Parameters:
Model: BBE-PSHF-01 • Working Air Pressure: 0.5–0.7 MPa • Filling Accuracy: ≤±1% • Package Size: 90×32×32 cm • Motor Power: 20 W • Filling Range: 50–500 ml • Hopper Volume: 45×45×45 cm • Package Weight: 20.5 kg • Voltage: 220V/50Hz (110V customizable) • Note: Requires external air compressor

This table outlines the specifications for our most popular model configuration. Multiple filling ranges and head configurations are available to perfectly match your production needs.

Horizontal Pneumatic Honey Filler — Built for Thick, Sticky, Real Honey

You need a honey filler machine that doesn’t smear jar rims or waste product. This horizontal pneumatic honey filling machine uses a precision piston and a 304 stainless product path to push viscous honey smoothly, then snap-shut with an anti-drip tip so your labels never fight a sticky neck.

Key things you feel in use: the suck-back nozzle pulls a clean tail, the hand/auto toggle lets you pace batches, and the tool-free tri-clamp lets you lift the line for CIP-style rinsing in minutes. The 0.5–0.7 MPa air circuit gives consistent strokes; accuracy holds at ≤±1%, even as temperature or head pressure change.

We build these in an apiculture tooling line audited to ISO 9001, with deburred edges, polished welds, and batch traceability. After hundreds of field hours bottling spring and late-flow crop, we tuned the stroke seals and guide bushings so you feel a firm, repeatable end-stop—no spongy lag, no stringing.

Ready to scale? Add a double-head honey piston filler, a heated hopper, or a capping station for a turnkey honey bottling machine line. Ask for a sample video and a landed honey filling machine price quote.

Bulk & OEM Options — Configure Your Honey Bottling Machine

Item	MOQ	Custom Logo	Colour Choices	Lead Time (days)	Remark

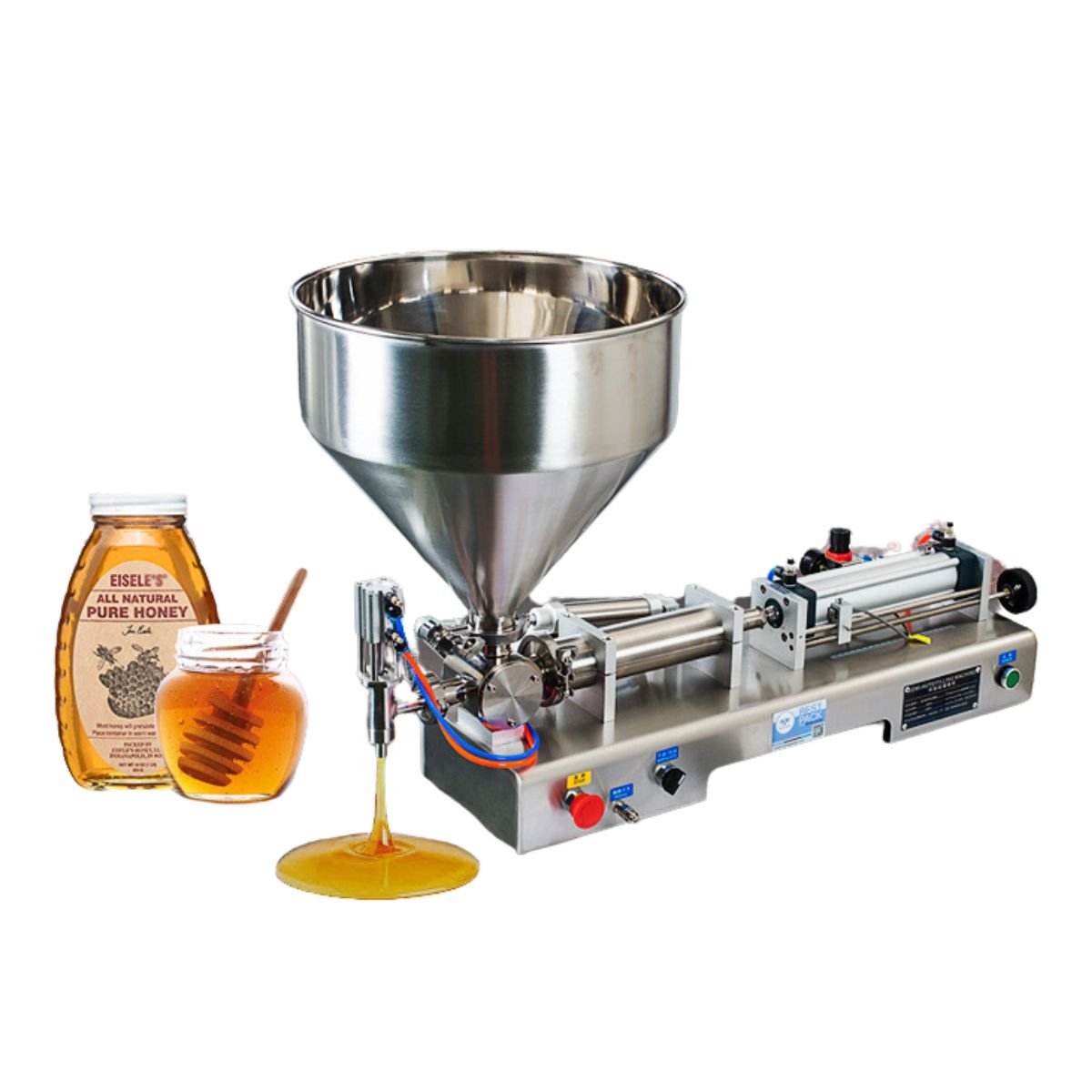

BBE-HFM-01 Single-Head 50–500 ml	10	Laser/Plate	Silver, Black Guard	15–20	304 product-contact path
BBE-HFM-02 Double-Head 50–500 ml	6	Laser/Plate	Silver, Black Guard	20–25	2× throughput
BBE-HFM-10 100–1000 ml	8	Laser/Plate	Silver	18–25	Long-stroke cylinder
Heated Hopper Kit (304 SS)	10	N/A	Silver	15–20	PID temp control
Anti-Drip/Suck-Back Nozzle Set	20	N/A	Silver	10–15	6/14/18/26 mm tips
Carton/Label OEM Pack (EN/RU/PT/ES)	50	Full	Brand Pantone	12–18	GS1 barcodes

Logistics & Payment — Built for Export Schedules

We ship EXW/FOB/CIF/DDP by sea, air, rail, or express (DHL/UPS). Typical lead time runs 15–25 days for standard units and 25–35 days for OEM. Annual export capacity exceeds 6,000 units, with consolidated containers available. Secure payments via T/T, L/C, PayPal for samples. Pre-shipment QC photos/videos and optional SGS/BV inspections keep your team in control of risk.

Compliance & Certifications — What Your Auditor Wants to See

• ISO 9001 audited production • CE declaration (machinery & LVD where applicable) • 304 stainless product-contact surfaces • FDA-grade silicone/PTFE seals (food contact) • RoHS-compliant electrical parts (heater kits) • Material certificates & test reports available on request.

B2B Case Spotlight — Less Breakage, Faster Throughput

A South American distributor replaced hand-pouring with BBE-HFM-02 double-head units and a heated hopper. Jar rim cleanliness improved immediately; transit breakage from sticky lids dropped 38%, and line speed rose 27% on 350 g squeeze bottles. With cleaner caps and fewer reworks, retailers expanded PO volume and the distributor opened two new regions within one season.

Which Model Is Right for You?

Model	Fill Range	Best For	Why It Fits

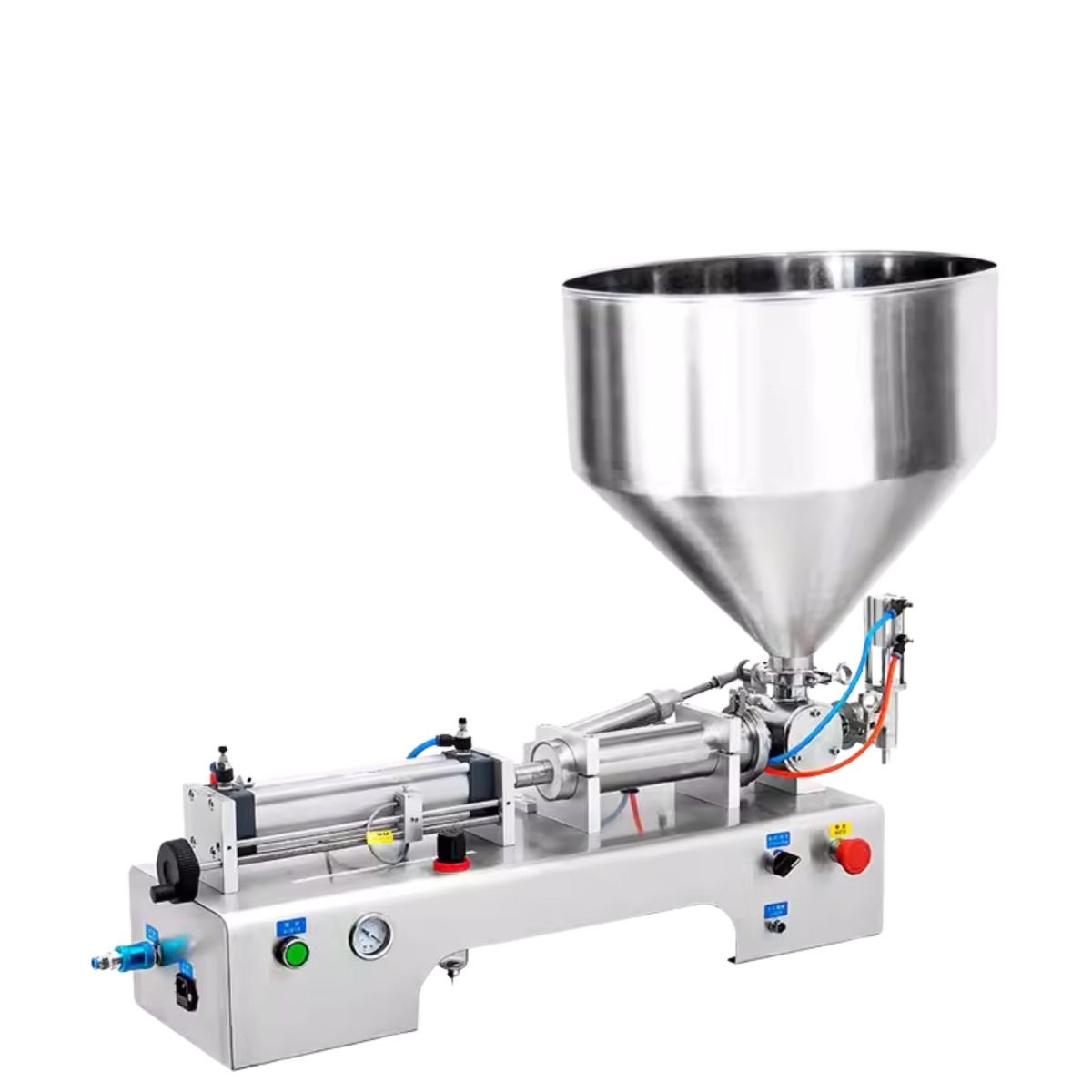

BBE-HFM-01 Single-Head	50–500 ml	Artisanal shops, start-ups	Lowest air demand; quick tool-free clean-down
BBE-HFM-10 Single-Head	100–1000 ml	500 g–1 kg jars	Longer stroke handles higher viscous load

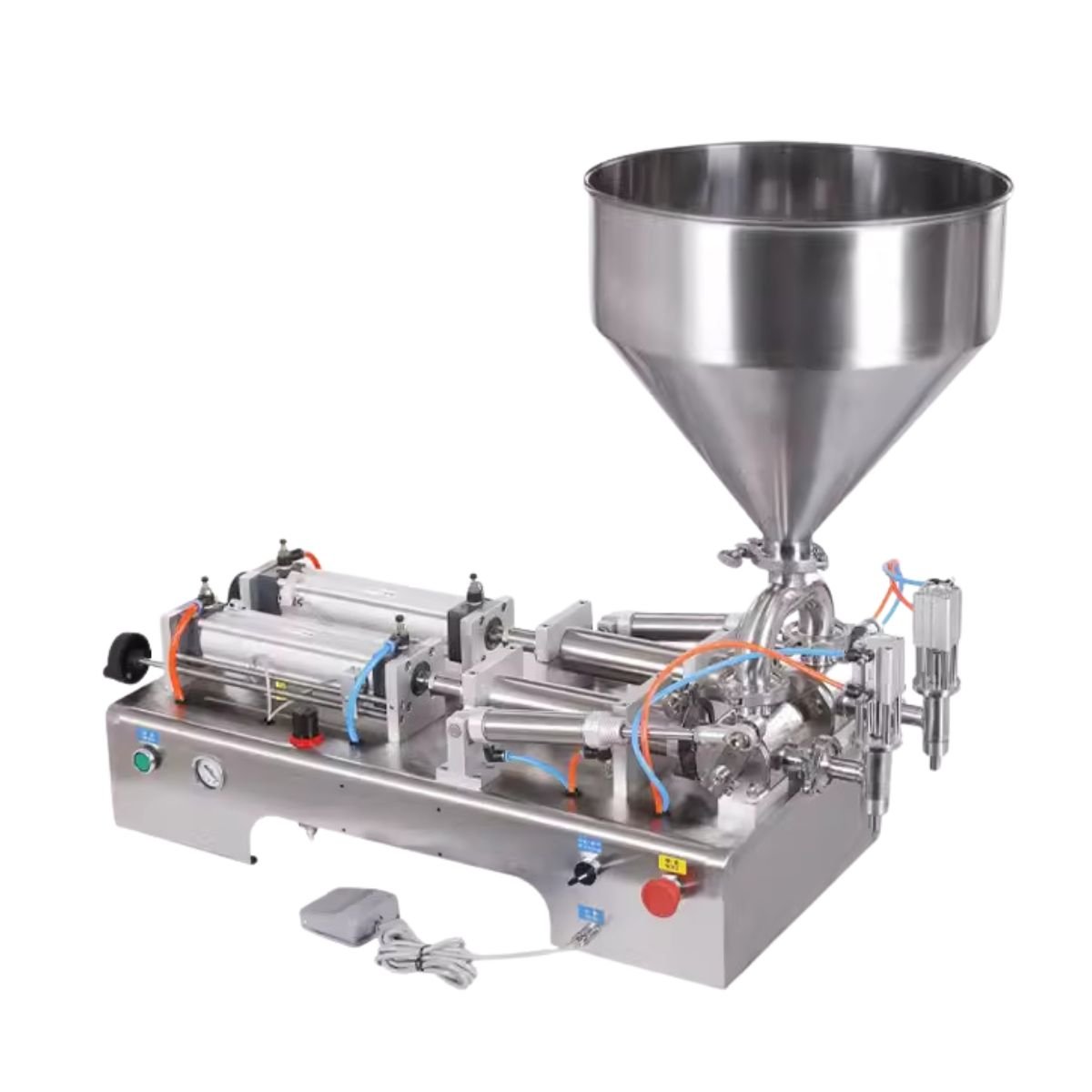

BBE-HFM-02 Double-Head	50–500 ml	Co-ops, contract packers	2× throughput with one operator
Heated Hopper Add-On	—	Crystallization-prone honeys	Gentle heat stabilizes viscosity for ±1% dosing
Nozzle Kit 6–26 mm	—	Wide neck sizes	Match bore to flow; stops stringing at cutoff

Complete Your Kit — Frequently Bought Together

• Heated Honey Hopper (304 SS, PID control): Stabilizes viscosity so the honey filler machine maintains ±1% dosing on cool mornings.
• Semi-Auto Capping Machine: Locks caps to torque spec; fewer leakers in transit.
• Bottle Rinser/Air Jet Cleaner: Keeps jars dust-free for better seal integrity.
• Inline Labeler: Fast, square labels on squeeze bottles and jars; retail-ready finish.
• Oil/Water Separator & Air Compressor (matched CFM): Clean, dry air protects piston seals and accuracy.

Inside Our Factory — How Your Honey Filling Machine Is Built & Verified

This video walks you through our honey filling machine manufacturer workflow—from raw 304 stainless to a calibrated, export-ready unit. You’ll see how we form, weld, and finish the product-contact path, then prove accuracy and safety before we seal a single carton.

• Material prep: 304 stainless is laser-cut, edges deburred, and passivated for food contact; tri-clamp joints assemble tool-free for easy CIP.

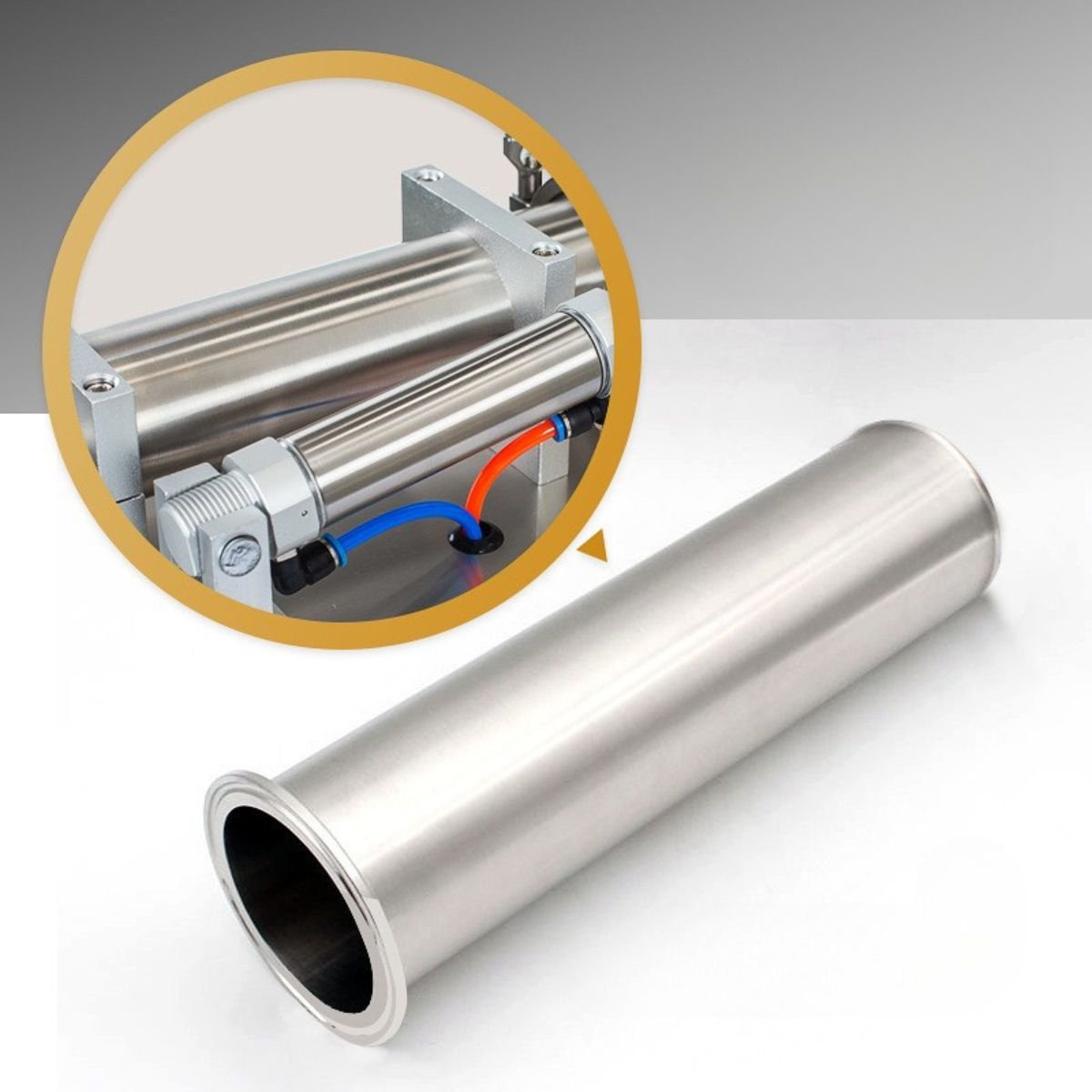

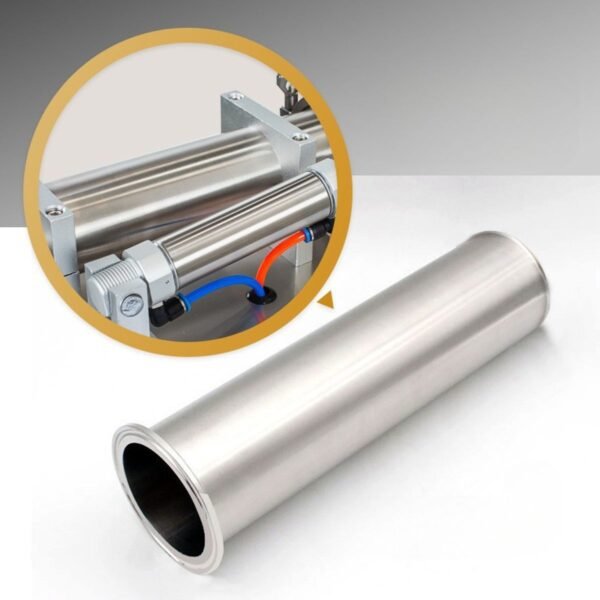

• Piston assembly: Bore and piston are precision-fit with FDA-grade seals; air circuits are leak-tested at 0.5–0.7 MPa so each stroke feels firm and repeatable.

• Nozzle validation: The anti-drip/suck-back valve is cycled on viscous media to prevent stringing and rim mess on real jars.

• Gravimetric calibration: We verify ≤±1% dosing across the stated range (e.g., 50–500 ml) on a certified scale, then lock settings.

• QC & packing: You’ll see AQL sampling, photo proof, lot/GS1 labels, foam-inset cartons, and ISPM-15 pallets for global shipping.

You get what matters in the yard: clean cuts, predictable dosing, and machines that arrive ready to run with documented QC—so your honey bottling machine hits throughput on day one.

Honey Filling Machine FAQ — Fast Answers for Buyers

Q1: What viscosity can this honey jar filling machine handle?
Up to thick raw honey; the piston and 6–26 mm nozzles manage 5,000–50,000 cP. Add the heated hopper for crystallized or cool-room bottling.

Q2: Is product contact material food-safe?
Yes. Product path is 304 stainless with FDA-grade silicone/PTFE seals. Material certs are available.

Q3: What accuracy can I expect?
Mechanical accuracy is ≤±1% when air pressure is 0.5–0.7 MPa and nozzle bore matches jar neck.

Q4: Do I need an air compressor?
Yes. Clean, dry air at 0.5–0.7 MPa. Use an oil/water separator to protect seals and keep dosing stable.

Q5: How fast is the semi automatic honey filling machine?
Throughput depends on fill volume and operator pace. As a guide, single-head 50–500 ml reaches 8–18 bpm; double-head roughly doubles that.

Q6: How do I prevent dripping and strings?
Use the anti-drip shut-off with suck-back and select a nozzle bore that suits your honey and jar neck.

Q7: Can I CIP this honey filling line?
Tri-clamp joints allow fast disassembly for hot-water/alkaline rinse. For full CIP, ask about our dedicated manifold kit.

Q8: Can you supply OEM/ODM versions?
Yes—logo plates, colors, multi-language manuals, GS1 barcodes, and custom carton artwork are available.

Q9: What is the wholesale honey filling machine price and lead time?
Prices are quoted FOB/CIF by model and options. Typical lead time is 15–25 days (standard) or 25–35 days (OEM). Request an RFQ for a landed quote.

Q10: What after-sales support do you provide?
12-month structural warranty (heater/electrical 6 months), spare seals/nozzles, video support, and optional on-site commissioning via partners.
